PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming

PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming

PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming
  • PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming
  • PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming
Product Details:
Place of Origin: China
Brand Name: PLM
Model Number: PLFJ-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 18000/set
Packaging Details: export standard wood carton
Delivery Time: 30 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 sets / 30days
Contact Now
Detailed Product Description
Product Name: PLFJ-110 35–45 Cans/min Full-Auto High Speed Turntable Seaming Production Line Keywords: 35–45 Cans/min Full-Auto High Speed Turntable Seaming Production Line
Production Capacity: 35–45 Cans/min Sealing Diameter: 56–110 Mm
Filter Assemble Height: 50–270 Mm Available Steel Thickness: 0.5–0.8 Mm
Turntable Deciles: 12 Motor Power: 5 KW
Working Air Pressure: 0.6 MPa Power Supply: 380 V / 50 Hz
M/C Weight: 600 Kg M/C Size (L × W × H): 700 × 985 × 2060 Mm 5050 × 340 × 1415 Mm 2050 × 250 × 925 Mm 500 × 320 × 1085 Mm
High Light:

high speed air filter production line

,

seaming air filter production line

PLFJ-110 35–45 cans/min Full-Auto High Speed Turntable Seaming Production Line

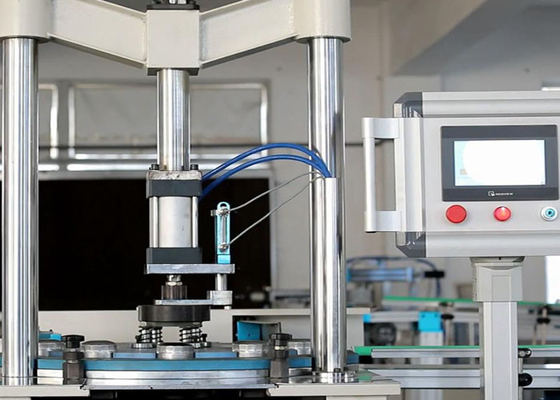

High Speed Turntable Seaming Machine Cosisits:



Fully Automatic Filter Seamer  features:



Electric and pneumatic controls are used by the seaming machine. The feed movements are carried out for the first roller and second roller by two sets of cam mechanics.
Loading and unloading of the processing port will be done by the pneumatic parts that are controlled by the pre-determined program.
The sealing wheel uses cr12mov of high as- quenched hardness and fine wear resistance to lengthen the service life.
This turnable seaming machine adopts the high precise import divider to ensure the seaming quality.
This is high speed seaming machine, has the completely automatically circulation of the up-loading, seaming and down-loading.



Turntable Seaming Production Line specification



Product Name PLFJ-110 35–45 cans/min Full-Auto High Speed Turntable Seaming Production Line
Keywords 35–45 cans/min Full-Auto High Speed Turntable Seaming Production Line
Production Capacity 35–45 cans/min
Sealing Diameter 56–110 mm
Filter Assemble Height 50–270 mm
Available Steel Thickness 0.5–0.8 mm
Turntable Deciles 12
Motor Power 5 kW
Working Air Pressure 0.6 MPa



High Speed Turntable Seaming Machine Applications:



This turntable seaming machine is mainly used for seaming the shells of the spin-on oil& fuel filters.



PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming 0

PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming 1

PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming 2



Advantages of PLM for Air Filter Making Machine:



PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming 3

PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming 4

PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming 5PLFJ-110 35–45 Cans/Min Air Filter Production Line Full Auto High Speed Turntable Seaming 6
