| Place of Origin: | China |
| Brand Name: | leiman |
| Model Number: | PLPG-350 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 19900 |
| Packaging Details: | wooden carton |
| Delivery Time: | 25 word days |
| Payment Terms: | D/P, D/A, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 set / month |
| Product Name: | Full-Auto Filter Paper Pleating With Gluing Machine | Speed: | 5–30 M/min (adjustable) |
|---|---|---|---|
| Conveyor Belt Speed: | 0–5 M/min (adjustable) | Min. Paper Width: | 90 Mm |
| Max. Paper Width: | 320 Mm | Min. Pleat Height: | 16 Mm |
| Max. Pleat Height: | 72 Mm | Operating Temperature: | Up To 300 °C |
| Heating Power: | 8.5 KW | Transmission Power Of Pleater: | 0.75 KW |
| Conveyor Belt Transmission Power: | 0.25 KW | Working Air Pressure: | 0.6 MPa |
| Power Supply: | 380 V / 50 Hz | M/C Weight: | 1100 Kg |
| M/C Size (L × W × H): | 7500 × 950 × 1750 Mm | Keywords: | PLPG-350 Full-Auto Filter Paper Pleating With Gluing Machine |
| High Light: | filter paper rotary pleating machine,gluing rotary pleating machine |
||

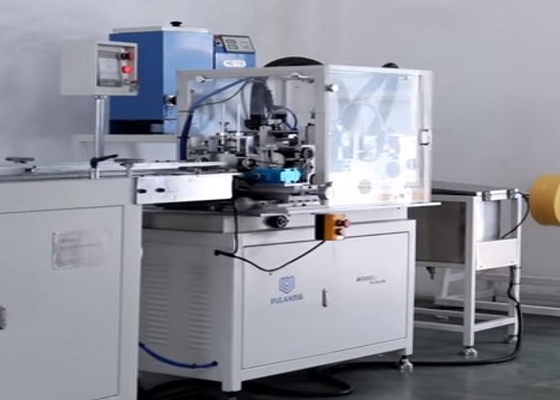

5–30 m/min PLPG-350 Full-Auto Filter Paper Pleating with Gluing Machine
Car air filter paper pleating machine introduction
The filter paper pleating machine consists of paper de-coiler, water steam device, pleating machine, hot-melt unit, belt conveyor, automatic counting.
Both the work speed of the machine and transmission speed of conveyor belt are controlled by computer, and can be easily adjusted.
Both impression and bubble formation are finished on the identical pairs of rollers with high precision.
The temperature can be predetermined in accordance with the requirement of the technological process. When the pleating machine runs and the heater will start to work automatically.
It adopts the water steam device, which is advantageous to prevent the paper from breaking when it is marked by rollers.
Melt quickly, the glue dispensing quantity can be easily controlled by frequency converter.
Set pressure control unit in glue feeding circuit to ensure the circuit safety.
Both the rubber hose and nozzle are independently temperature controlled, and easy to operate.
Panel car air filter paper pleating machine Applications
This paper pleating production line is used for making the square air filter and ECO filter element.
Car air filter paper pleating machine specification
| Product Name | 5–30 m/min PLPG-350 Full-Auto Filter Paper Pleating with Gluing Machine |
| Kyewords | PLPG-350 Full-Auto Filter Paper Pleating with Gluing Machine |
| Speed | 5–30 m/min (adjustable) |
| Conveyor Belt Speed | 0–5 m/min (adjustable) |
| Min. Paper Width | 90 mm |
| Max. Paper Width | 320 mm |
| Min. Pleat Height | 16 mm |
| Max. Pleat Height | 72 mm |
Advantages of PLM for Air Filter Making Machine:
