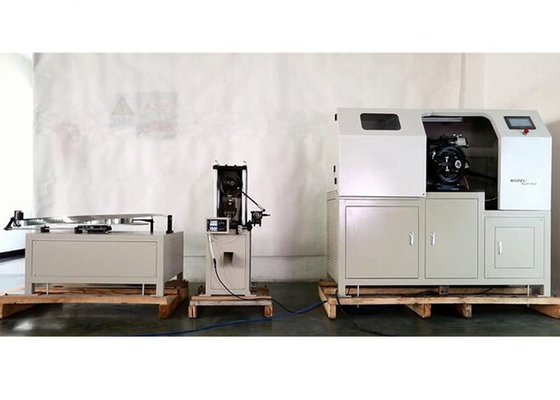

Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making

Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making

Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making
  • Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making
  • Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making
Product Details:
Place of Origin: CHINA
Brand Name: PLM
Certification: CE
Model Number: PLJY-75-II
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 10000 SET
Packaging Details: Export standard wookden box
Delivery Time: 8 work days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 7 Set Per mouth
Contact Now
Detailed Product Description
Name: Center Tube Spiral Coiling Machine Certificate: CE Certificate
Function: Center Tube Spiral Type: Center Tube Making Machine
Material: Stainless Steel Structure: Steel Structure
Product Capability: 20-35pcs/min M/C Weight: 800kg
High Light:

fullauto rotary pleating machine

,

spiral center tube rotary pleating machine

Full-auto Spiral Center Tube Making Machine Steel Structure white PLJY-75-II Certificate CE Certificate Material Stainle



General Description


The machine is technically used in manufacturing the center tubes of the auto. Oil and fuel filters. Furthermore, the perforated/round hole spiral tube can be made as well.



Machine parameters



1. The machine can easily change the diameter of screw tube in a short time.
2. Cut the needed length according to what the customers' specifications.
3. Can adjust the clutch according to different thickness of the steel strip.
4. The computer control machine can save production costs and working procedures with its high efficiency, steady quality and economical materials.
5. Adopts hydraulic pressure drive, which has strong power and good stable.



Specification


1, Product capability:20-35pcs/min
2, Diameter of the center tube:Φ30~Φ75mm
3, Length of center tube to be processed:freely.
4, Steel plate thickness:0.25~0.32mm
5, Motor power:3kw
6, Power supply:380V/50Hz
7, Working air pressure:0.6MPa
8, M/C weight:800kg
9, Size of the main machine:1600×800×1240mm(L×W×H)
10, Size of the paper decoiler:1200×800×760mm(L×W×H)



Features


1, The machine can easily change the diameter of screw tube in a short time.
2, Cut the needed length according to what the customers' specifications.
3, Can adjust the clutch according to different thickness of the steel strip.
4, The computer control machine can save production costs and working procedures with its high efficiency, steady quality and economical materials.
5, Adopts hydraulic pressure drive, which has strong power and good stable.

Applications


The machine is technically used in manufacturing the center tubes of the auto. Oil and fuel filters. Furthermore, the perforated/round hole spiral tube can be made as well.



Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making 0Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making 1Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making 2Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making 3Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making 4
