PLPG-350 Full-auto air filter paper pleating machine Material Stainless Steel Speed 5~30m/min

PLPG-350 Full-auto air filter paper pleating machine

一.Consists
1,Paper de-coiler
2,Water steam device
3,Pleating machine
4,Hot-melt unit
5,Belt conveyer
6,Automatic counting

二. Features
1, Both the work speed of the machine and transmission speed of conveyer belt are controlled by computer, and can be easily adjusted.
2,Both impression and bubble formation are finished on the identical pairs of rollers with high precision.
3, The temperature can be predetermined in accordance with the requirement of the technological process. When the pleating machine runs and the heater will start to work automatically.
4,It adopts the water steam device, which is advantageous to prevent the paper from breaking when it is marked by rollers.
5,Melt quickly, the glue dispensing quantity can be easily controlled by frequency converter.
6,Set pressure control unit in glue feeding circuit to ensure the circuit safety.
7,Both the rubber hose and nozzle are independently temperature controlled, and easy to operate.

三.Applications
It is technically used fo manufacturing the car panel filter.

PLPG-350 Full-auto air filter paper pleating machine parameter

Specification
1, Width:90~320mmPleatingheight:20~58mm
2, Speed:5~25m/min(adjustable)
3, Temperaturerange:0~300℃
4, Heaterpower:8.5kw
5, Transmissionpowerofpleater:0.75kw
6, Conveyerbelttransmissionpower:0.25kw
7, Conveyerbeltspeed:0~5m/min.(adjustable)
8, Workingairpressure:0.6Mpa
9, Powersupply:380V/50Hz
10, M/Cweight:1100kg
11, M/Csize:7500×950×1750mm(L×W×H)

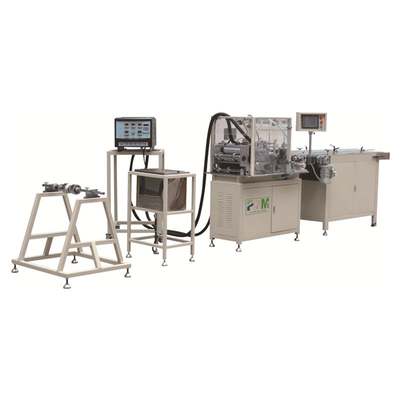

PLPG-350 Full-auto air filter paper pleating machine photo

PLM – YOUR RELIABLE FILTER ELEMENT PRODUCTION HELPER
Founded in 1990, PLM specialized in Filter element manufacturing, after years of development, PLM has grown into a total solution designer including consultation, machine and material supply, and technical support. Our machines have been recognized worldwide for superior precision, outstanding rigidity, and exceptional reliability. Today we have more than 200 kinds of machines and models fulfilling the industry's diverse requirements.

PLM SOLUTIONS CONTRIBUTE TO YOUR SUCCESS
PLM is specialized in providing filter production solutions for our customers. Until now, our solutions cover car & heavy duty air filters, cabin filters, oil & fuel filters, and primary/middle/high-efficiency filters. Over 70 kinds of filter production machines and test machines satisfy customers with different requirements and budgets. A complete line of filter materials saves customers purchasing time and cost. All of these help customers efficient production and high output. Our online and on-site supports eliminate customers' worries. We have gained the ISO, CE, and CO certifications, which verify our machines and materials accord with international and market requirements.

TOTAL SOLUTIONS HELP YOUR QUALIFIED & EFFICIENT PRODUCTION
PLM is committed to filter element machines and filter material production for several years, we are proficient at offering total solutions tailored to maximize your product value. No matter whether you are a beginner or get trucked in trouble, You'll get a satisfied solution here.
