Place of Origin: | CHINA |
Brand Name: | PLM |
Certification: | ISO9001 |
Model Number: | LM-DB20 |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | $5000 /SET |
Packaging Details: | WOODEN CASE PACKING |
Delivery Time: | 40 DAYS |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 10 SETS PER MONTH |
PRODUCT NAME: | LM-DB20 Laser Marking Machine Beam Quality M2<1.5 Color White | Beam Quality: | M2<1.5 |
---|---|---|---|
Wavelength: | 1064nm | Rated Output Power: | 20W |

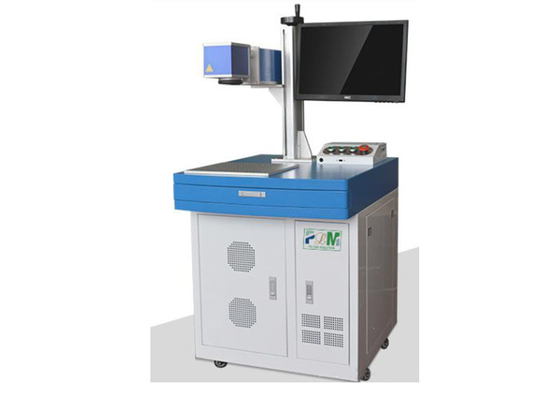

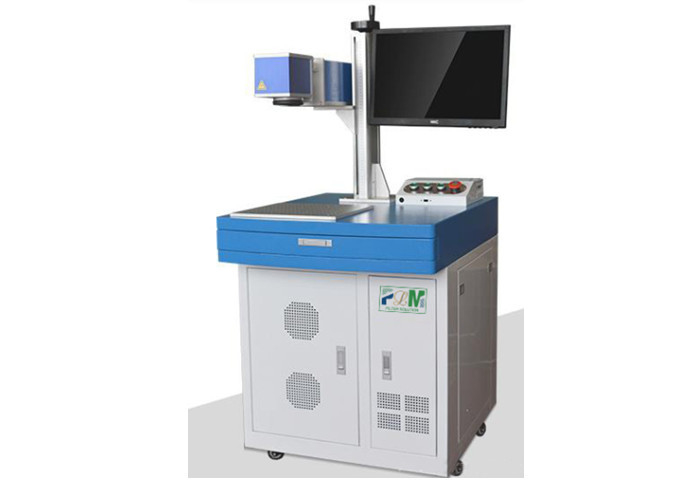

LM-DB20 Laser marking machine Beam quality M2<1.5 color white
LM-DB20 Laser marking machine Beam quality M2<1.5 color white
High light conversion efficiency, small output laser spot, good beam quality, (M<1.2), high output laser stability, easy to debug marking effect, thin marking lines, more suitable for some finer graphic markings. The performance of the whole machine is stable, the air cooling avoids the water tank, the volume is small, and the power consumption is low.
The life span can reach tens of thousands of hours under continuous working condition, and the pulse number can reach 10 times under pulsed working condition. In contrast, the life span of flash lamp under pulsed and continuous working condition is only 10 times and 2000 hours respectively.
LM-DB20 Laser marking machine Beam quality M2<1.5 color white Specification
1. Model : LM-DB20 2. Beam quality:M2<1.5 3. Wavelength: 1064nm 4. Rated output power: 20W 5. Mark type: Dynamic markup 6. Focus spot diameter: <0.01mm 7. Engraving range: 180mmx 180mm optional range 8. Marking depth: ≤1.2mm 9.Marking speed: 600-1000 characters/sec 10.Size: 62cm*76cm*148cm (L*W*H) 11. Ambient temperature: Temperature: 5-35℃. Humidity: 10%-80% 12. Minimum character: 0.15mm 13. Weight: About 120kg 14. System protection level: IP54 15: Laser safety level: Class IV 16. System operating environment: Windows XP/2000/98 17. Repeatability: ±0.001mm |
LM-DB20 Laser marking machine Beam quality M2<1.5 color white Application field
Digital product components, precision machinery, jewelry, sanitary ware, measuring tools, watches, glasses, plastic buttons, integrated circuit chips, electrical appliances, electronic components, hardware accessories, hardware tools, mobile communication components, auto parts, plastic products, medical equipment , Construction materials, pipelines and other high-precision product identification. The end pump marking machine is used in electronic components, integrated circuits, electrical appliances, communication products, hardware products, sanitary ware, tool accessories, precision equipment, signs, glasses and watches, jewelry, plastic buttons, building materials, food and drug packaging, PVC pipes, medical equipment and other industries. The mark is clear and beautiful, and will never disappear.
LM-DB20 Laser marking machine Beam quality M2<1.5 color white PHOTO
