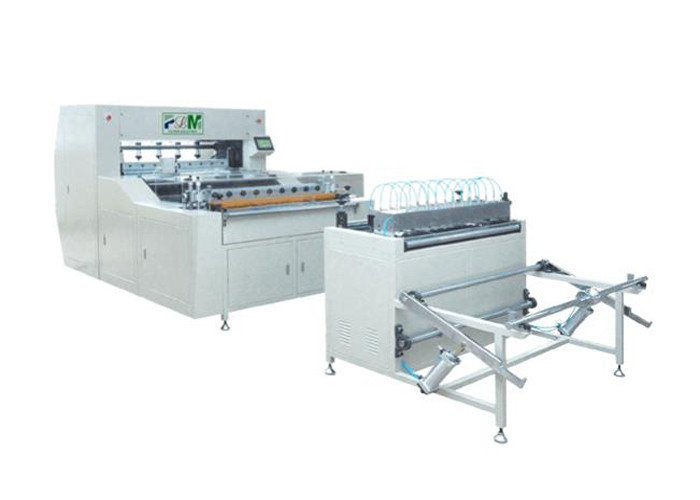

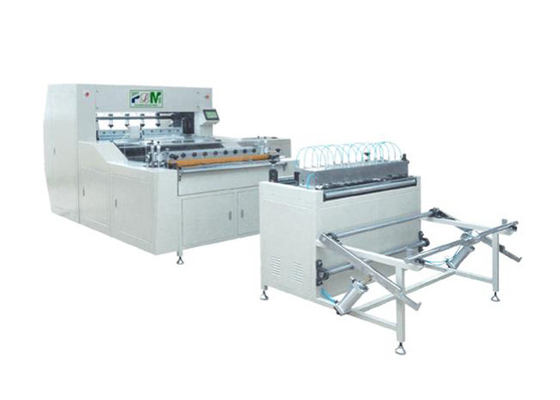

PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine

PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine

PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine
  • PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine
  • PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine
  • PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine
Product Details:
Place of Origin: China
Brand Name: PLM
Certification: CE
Model Number: PLCZ55-1050-II
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD 5200/SET
Packaging Details: wood case export package
Delivery Time: 20-25working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 SET PER MONTH
Contact Now
Detailed Product Description
Product Name: PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine Pleating Speed: 0–110 Pleats/min
Max. Paper Width: 1050 Mm Adjustable Pleating Height: 8–55 Mm
Power Supply: 380 V / 50 Hz Motor Power: 5 KW
Heating Power: 7.5 KW Operating Temperature: Up To 200 C
Working Air Pressure: 0.6 MPa M/C Weight: 650 Kg
M/C Size (L × W × H): 1670 × 1720 × 1240 Mm Keywords: PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine
High Light:

PLC Control Paper Folder Machine

,

Wire Mesh Paper Folder Machine

,

Paper Folding Machine Grey Color

PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine



Paper folder machine features


The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. it is simple operated but smooth and effective. After slitting the paper the conveyor for feeding the filter paper runs in synchronism with the marking machine by equipping the monitoring system.
The marking machine can mark in different pleat sizes, the marking distance can be set freely by the computer screen, and accurately marking distance will be appeared with the step motor loading.

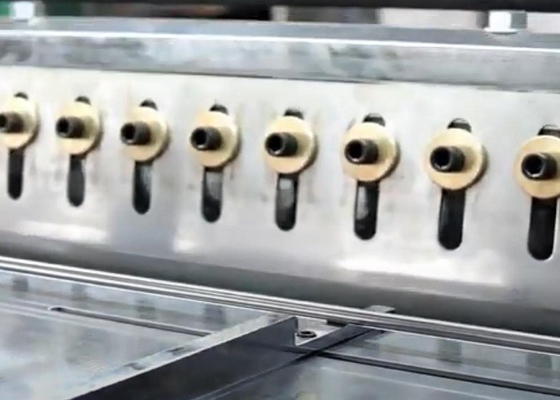

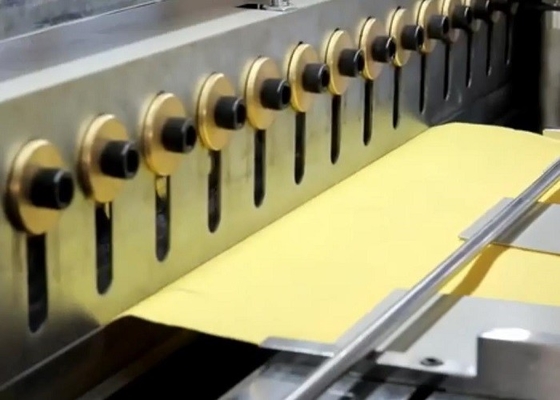

The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.
After marking, the filter paper will be pleated and pre-heated.
The machine is also suitable for folding the iron wire fabric and non-woven fabric of the hydraulic filter , even the multilayer folding.



Paper folder machine Specifications



Product Name PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine
Pleating Speed 0–110 pleats/min
Max. Paper Width 1050 mm
Adjustable Pleating Height 8–55 mm
Power Supply 380 V / 50 Hz
Motor Power 5 kW



Knife type filter paper pleating machine applications


The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.



Following will be the detail for the pleating machines:





PLCZ55-1050-100-800-DETAILSPLCZ55-1050-100-800-DETAILS



PLCZ55-1050-100-800-chat





Advantages of PLM for Air Filter Making Machine:



PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine 3

PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine 4

PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine 5PLC Control PLCZ55-1050-II Paper Folder Machine Knife Pleating Machine 6
