Place of Origin: | CHINA |
Brand Name: | PLM |
Certification: | CE |
Model Number: | Primary Filter Material |
Minimum Order Quantity: | 1000 m² |
---|---|
Price: | USD 1.2~1.4 /m² |
Packaging Details: | EXPORT STANDARD WOVEN BAG |
Delivery Time: | 20 DAYS AFTER DEPOSIT |
Payment Terms: | L/C, Western Union, MoneyGram |
Supply Ability: | 5000 m² per month |
Product Name: | Low Resistance Laminated Filter Media Primary Hepa Filter Paper | Basic Weight: | 85 G/m² |
---|---|---|---|
Thickness: | 0.5 Mm | Efficiency: | 65 % |
Video Factory Inspection: | Provided | Ressure Drop: | 6 Pa |
High Light: | 6Pa glass filter media,0.5mm glass filter media,ulpa filter paper |

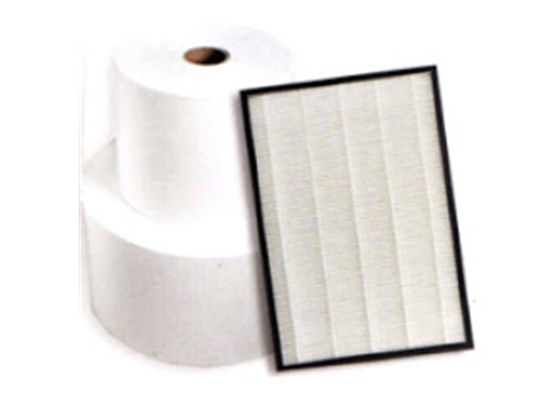

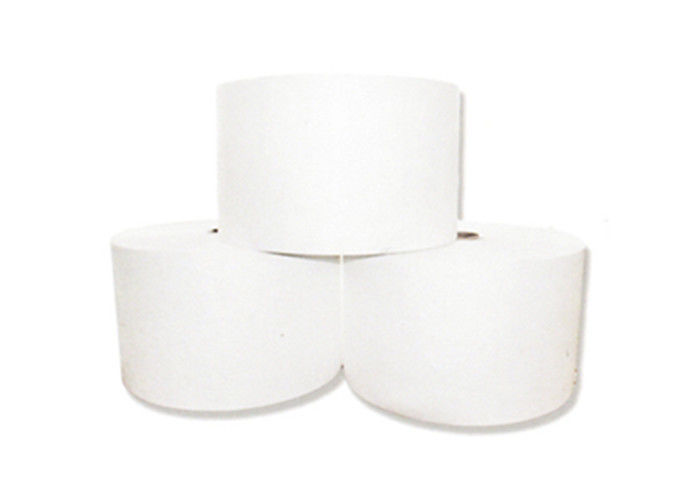

Low Resistance Laminated Filter Media Primary Hepa Filter Paper
Low Resistance Laminated Filter Media Primary Hepa Filter Paper Description
Low-resistance rubber fiber composite filter material is a composite of low-resistance melt-blown filter material with breathable polyester support material and electrostatic cotton neck filter material to achieve the effect of high dust holding and ultra-low resistance, increase the adsorption strength of particulate matter (dust), and improve In order to achieve the filtering effect and meet the market demand for low-energy filter materials, this product can be widely used in air purifiers, automobile air conditioners, and fresh air systems.
Low Resistance Laminated Filter Media Primary Hepa Filter Paper Product performance
Low resistance and high dust holding materials, which can increase the service life of the filter
Can reduce the energy consumption of the filter in the filtration system
Low-resistance materials can accelerate the speed of air passing through the filter material, increase the circulation frequency, and obtain high CADR values
The air is smooth, reducing the noise of the fan and achieving a comfortable environment
The resistance of the material base is low, and it can be combined with a variety of materials to achieve the effect of gradient filtering
Low Resistance Laminated Filter Media Primary Hepa Filter Paper Specification
Tyoe | Basic Weight g/m² | Thickness mm | Ressure Drop Pa | Efficency % | |||||||
LM-P-65 | 85 | 0.5 | 5 | 65 | |||||||
LM-P-80 | 85 | 0.5 | 6 | 80 | |||||||
LM-P-90 | 85 | 0.5 | 9 | 90 | |||||||
LM-P-95 | 90 | 0.5 | 11 | 95 | |||||||
LM-P-98 | 90 | 0.5 | 16 | 98 | |||||||
LM-P-995 | 95 | 0.5 | 22 | 99.5 | |||||||
LM-P-9997 | 105 | 0.65 | 36 | 99.97 | |||||||
LM-JD-65 | 135 | 1.5 | 5 | 65 | |||||||
LM-JP-90 | 130 | 1.5 | 10 | 90 | |||||||
LM-JP-P95 | 130 | 1.5 | 12 | 95 | |||||||
LM-JP-99 | 130 | 1.5 | 20 | 99 |
