length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine

Horizontal Gluing Heavy Duty Air Filter Making Machine

I. Horizontal Gluing Heavy Duty Air Filter Making Machine Consists:

1.decoiler

2.driver of upper glue gun

3.driver of lower glue gun

4. computer control cabinet

5.hot melt applicator

II. Horizontal Gluing Heavy Duty Air Filter Making Machine Specification:

1.capability: 3-5pcs/min

2.length of air filter≤ 950mm

3.diameter of air filter≥Φ100-500mm

4.power supply of main machine: 220V/50HZ

5.air pressure: 0.06MPa

6.power supply of hot melt applicator : 380V/50HZ

7.hot melt capacity 10KG

8. hot melt hearing power: 6kw

9. power of the main machine: 1KW

10. M/C weight 450KG

11. hot melt application size 600*780*1325 L*W*H

12.main machine size 2700*500*1555 L*W*H

Horizontal Gluing Heavy Duty Air Filter Making Machine Features

• The inner and outer mesh is well posited together with paper by the hot melt. And the paper is in tucked even under big air pressure.
• The filter gulled with hot melt will prevent the resistance from increasing by being no space between two pleats when filter paper pressured.
• The pitch of the machine can be adjustable according to the size of the filters through the PLC computer control system. The hot melt can be glued both in from of straight and spiral.
• The inner and outer circle can be glued both or independently with the electrical adjusted,.
• This machine can be operated both automatically and manually.

Horizontal Gluing Heavy Duty Air Filter Making Machine Application

This type of machine is used for gluing the hot melt on the inner and outer surface of the heavy duty air filter.

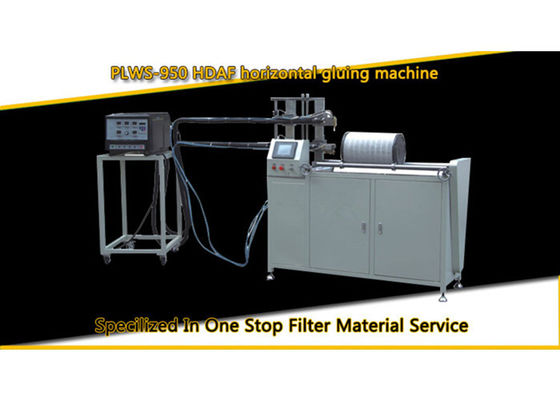

Horizontal Gluing Heavy Duty Air Filter Making Machine Photo

Horizontal Gluing Heavy Duty Air Filter Making Machine Packing
