| Place of Origin: | China |
| Brand Name: | PLM |
| Model Number: | PLGT-600N |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 17500 |
| Packaging Details: | wooden case |
| Delivery Time: | 20 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 set per month |
| Operating Temperature: | Up To 300 °C | Speed: | 0–35 M/min |
|---|---|---|---|
| Total Line Power: | 12 KW | Working Air Pressure: | 0.6 MPa |
| Power Supply: | 380 V / 50 Hz | M/C Weight: | 750 Kg |
| M/C Size (L × W × H): | 5200 × 1190 × 1170 Mm | Product Name PLGT-600N Speed 0–35 M/min Min. Paper Width 50 Mm Max. Paper Width 600 Mm Min. Pleat He: | 70 Mm |
| High Light: | Full Auto Filter Paper Pleating Machine,Filter Paper Pleating Machine Rotary,Filter Paper Pleating Machine 35 M/Min |
||

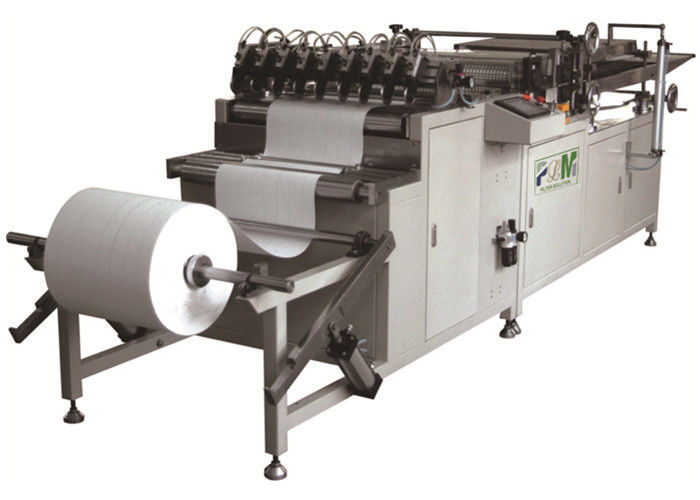

PLGT-600N Full-Auto Rotary Filter Paper Pleating Machine
PLGT-600N Newest Full-auto rotary filter paper pleating production line
1. Consists
| Auto paper de-coiler |
| Paper Pre-slitting machine |
| Pre-heating device before pleating |
| Auto counter |
| Water steam device |
| The specification of the drum can be changed arbitrarily |
| Roller and gear collecting device |
| Pleated paper heat forming and conveyor device |
2. Specification
| Product capability | 0~35m/min |
| Max.width | 600mm |
| Min.width | 50mm |
| Max.pleat height | 70mm |
| Min.pleat height | 10mm |
| Customize the rollers sizes | |
| Temp.control: normal temp | ~300oC |
| Main power | 12kw |
| Working air pressure | 0.6MPa |
| Power supply | 380V/50Hz |
| M/C weight | 750kg |
| M/C dimension | 5200×1190×1170mm(L×W×H) |
This machine is used for pleating and forming the HDAF filter element.
Contact Person: Miss. Dora
Tel: 15383380882
