4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A

4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A

4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A
  • 4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A
  • 4 Pcs/Time Full Auto Gluing Machine For 50 - 110 Mm End Cap PLZJ-2A
Product Details:
Place of Origin: China
Brand Name: Leiman
Model Number: PLZJ-2A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $13500/ set
Packaging Details: EXPORT STANDARD WOODEN CARTON
Delivery Time: 25-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Product Name: PLZJ-2A 4 Pcs/time Full-Auto End Cap Gluing Machine For 50–110 Mm End Caps Available ID Of The End Cap: 50–110 Mm
Max. End Caps Output: 4 Pcs/time Speed: 45 Pcs/min
Viscosity Of Glue: ≤50000 CP Glue Kind: PVC (high Temp.solidified Adhesive)
Power Supply: 220/50 V/Hz Conveyor Motor Power: 2 KW
Working Air Pressure: 0.6 MPa Pump Air Pressure: 0.45 MPa
M/C Weight: 600 Kg M/C Size (L × W × H): 1700 × 1600 × 1600 Mm
High Light:

50Mm End Cap Gluing Machine

,

4 Pcs/Time End Cap Gluing Machine

,

110Mm End Cap Gluing Machine

PLZJ-2A 4 pcs/time Full-Auto End Cap Gluing Machine for 50–110 mm End Caps





Full-Auto End Cap Gluing Machine for 50–110 mm End Caps



  • The action of end caps loading and gluing can be regulated easily by computer control ,so it is coordinate and work normally.
  • This machine has the function of evenly gluing on the end cap of the filter.
  • This machine has excellent characteristics such as high efficiency and easy operation.
  • Adopts import gluing pump guarantee for accurately gluing.
  • Specially equipped the gluing tanks which make gluing much more evenly.

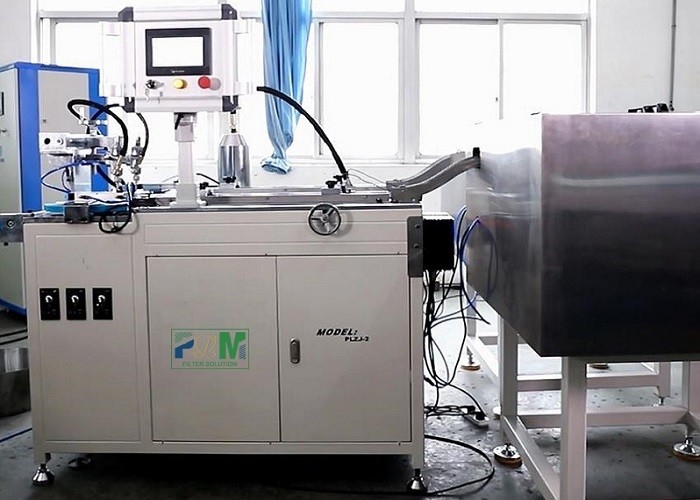

PLZJ-2A Full-Auto End Cap Gluing Machine for 50–110 mm End Caps


The PLZJ-2A machine is used to glue the filter element end caps.



Product Name PLZJ-2A 4 pcs/time Full-Auto End Cap Gluing Machine for 50–110 mm End Caps
Available ID of The End Cap 50–110 mm
Max. End Caps Output  4 pcs/time
Speed 45 pcs/min
Viscosity of Glue ≤50000 cP
Glue kind PVC (high temp.solidified adhesive)
Power Supply 220/50 V/Hz
Conveyor Motor Power 2 kW
Working Air Pressure 0.6 MPa
Pump Air Pressure 0.45 MPa
M/C Weight 600 kg
Key Words 4 pcs/time Full-Auto End Cap Gluing Machine for 50–110 mm End Caps





4 pcs/time  End Cap Gluing Machine for 50–110 mm End Caps
