Product Details:
Place of Origin: CHINA
Brand Name: PLM
Certification: CE
Model Number: PLWS-950
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD 7500/SET
Packaging Details: EXPORT STANDARD WOOD CARTON
Delivery Time: 20 DAYS AFTER DEPOSIT
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 SETS PER 30DAYS
Contact Now
Detailed Product Description
Product Name: Horizontal Gluing Heavy Duty Air Filter Making Machine Product Capacity: 3-5pcs/min
Length Of Air Filter: ≤ 950mm Diameter Of Air Filter: ≥Φ100-500mm
Hot Melt Machine Heating Power: 6kw Power Supply: 220v/50hz
Working Pressure: 0.6mpa M/C Weight: 450kg

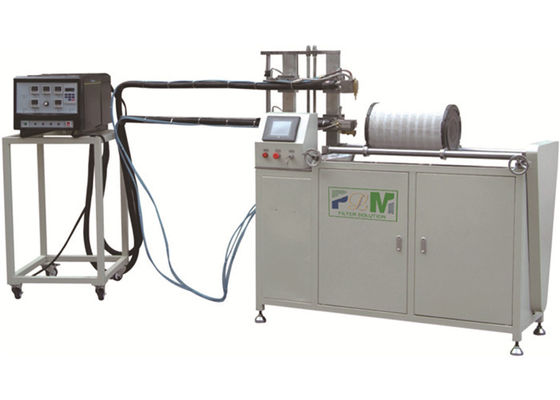

Horizontal Gluing Heavy Duty Air Filter Making Machine



I. Horizontal Gluing Heavy Duty Air Filter Making Machine Consists:

1.decoiler

2.driver of upper glue gun

3.driver of lower glue gun

4. computer control cabinet

5.hot melt applicator



II. Horizontal Gluing Heavy Duty Air Filter Making Machine Specification:

1.capability 3-5pcs/min
2.length of air filter ≤ 950mm
3.diameter of air filter ≥Φ100-500mm
4.power supply of main machine

220V/50HZ

5.air pressure 0.06MPa
6.power supply of hot melt applicator

380V/50HZ

7.hot melt capacity  10KG
8. hot melt hearing power 6kw
9. power of the main machine 1KW
10. M/C weight

450KG

11. hot melt application size 600*780*1325 L*W*H
12.main machine size 2700*500*1555 L*W*H



Horizontal Gluing Heavy Duty Air Filter Making Machine Features





  • The inner and outer mesh is well posited together with paper by the hot melt. And the paper is in tucked even under big air pressure.
  • The filter gulled with hot melt will prevent the resistance from increasing by being no space between two pleats when filter paper pressured.
  • The pitch of the machine can be adjustable according to the size of the filters through the PLC computer control system. The hot melt can be glued both in from of straight and spiral.
  • The inner and outer circle can be glued both or independently with the electrical adjusted,.
  • This machine can be operated both automatically and manually.



Horizontal Gluing Heavy Duty Air Filter Making Machine Application





This type of machine is used for gluing the hot melt on the inner and outer surface of the heavy duty air filter.





Horizontal Gluing Heavy Duty Air Filter Making Machine Photo



2.driver of upper glue gun

making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 0making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 1making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 2

making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 3making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 4making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 5making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 6





Horizontal Gluing Heavy Duty Air Filter Making Machine Packing



making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 7making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 8making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 9making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 10making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 11making machine hot melt application length 950mm Horizontal Gluing Heavy Duty Air Filter Making Machine 12

PLM – YOUR RELIABLE FILTER ELEMENT PRODUCTION HELPER
Founded in 1990, PLM was specialized in Filter element manufacturing, after years of development, PLM has grown into a total solution designer including consultation, machine and material supply and technical support. Our machines have been recognized worldwide for superior precision, outstanding rigidity and exceptional reliability. Today we have more than 200 kinds of machines and models fulfilling industry's diverse requirements.

TOTAL SOLUTIONS HELP YOUR QUALIFIED & EFFICIENT PRODUCTION
PLM is committed in filter element machine and filter material production for several years, we are proficient at offering total solutions tailored to maximize your product value. No matter you are beginner or get trucked in troubles, You'll get satisfied solution here.

PLM SOLUTIONS CONTRIBUTE TO YOUR SUCCESS
PLM is specialized in providing filter production solutions for our customers. Until now, our solutions covers car & heavy duty air filters, cabin filters, oil & fuel filters, primary/middle/high efficiency filters. Over 70 kinds of filter production machines and test machines satisfy customers with different requirements and budget. Complete line of filter materials save customers purchasing time and cost. All these help customers efficient production and high output. Our online and on-site supports eliminate customers' worries. We have gained the ISO, CE and CO certifications, which verify our machines and materials are accord with international and market requirements.
