Place of Origin: | CHINA |
Brand Name: | PLM |
Certification: | ISO9001 |
Model Number: | PLTN-100 |
Minimum Order Quantity: | 1set |
---|---|
Price: | $20000 |
Packaging Details: | wooden case packing |
Delivery Time: | 45days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 10 sets per month |
Max.width: | 700mm | Adjustable Pleating Height: | 10-18mm |
---|---|---|---|
Speed:: | 4~25m/min | The Interval Of Gluing:: | 25.4mm |
RThe Number Of Gluing:: | 2×24Lines | Power Supply:: | 380V/50Hz |
Output Of The Machine:: | 20kw | Working Air Pressure:: | 0.6MPa |

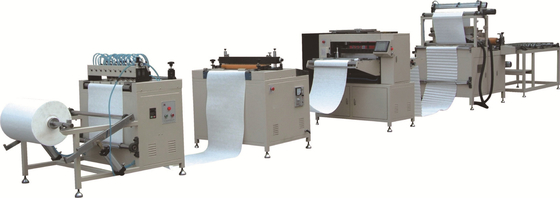

PLPP-700-ll Full-auto pp intermittent gluing production line filter making machine
PLPP-700-ll Full-auto pp intermittent gluing production line filter making machine
PLPP-700-ll Full-auto pp intermittent gluing production line filter making machine
General Description
This machine is professionally designed and used for Mini pleating and hot melt dispensing on the fiber glass or polypropylene, and is able to match different specifications of the filter elements, which is characterized with high productive efficient and simple operation.
Max.width: | 700mm |
Adjustable pleating height: | 10~80mm |
Speed: | 4~25m/min |
The interval of gluing: | 25.4mm |
The number of gluing: | 2×24Lines |
Power supply: | 380V/50Hz |
Output of the machine: | 20kw |
Working air pressure: | 0.6MPa |
M/C weight: | 700kg |
Hot melt M/C dimension: | 850×800×1165mm(L×W×H) |
Main M/C dimension: | 5000×1300×1720mm(L×W×H) |
Features
1, Both the fiber glass pleating and hot melt dispensing on the same machine. The long conveyer belt and cooling fans are adopted after the pleating system, so to fast drying the hot melt and cut any length.
2, The main machine, conveyer belt and the hot melt applicator are all controlled by the PLC and monitor which is simple operation and fast speed.
3,The travel distance of two pleats can be adjusted among certain scopes while hot melt dispensing, which avails the dryness and humidity of the hot melt and good for firmly folded.
4,This machine equips the cutting and trimming device, which is used to meet different filter specifications.
5,This production line is stainless steel obey and aluminum frame, which is strong ,nice and long life.
6,Six sets of the rollers circling placed on one machine, which is easily to be changed and to meet different specifications.
7,The hot melt melting very fast and the hot melt dispensing amount can be adjusted by the frequency converter.
8,High productive efficiency and good smoothness.
Furthermore, we can customize the paper-pleating production line of different specifications.
1.Q:Are you a manufacture or trading company?
A: We are a manufacture.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Anping City of China. You can fly to Beijing or Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: Free samples will be sent to you by express delivery.
4.Q:How does your factory do regarding quality control?
A: We have 10 years experience. "Quality is priority." we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 certificate.
Any questions or inquiry, pls contact us without hesitaton, hope to cooperate with you !
Clicking on the MessageBox below ,Send your message to me directly , Let's talk the details.
Our own factory and stock ,3 full production lines for filter paper Full production line ,from raw material wood pulp to the filter paper
Our factory in Hebei China.Through all these years, with the high quality, best service and good reputation,our products sell to all over the world.
