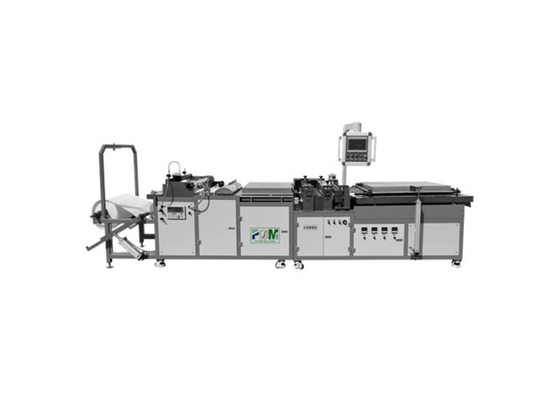

LM-ZZ-5 Drum type air filter origami (700 type) 700mm width Folding height range 22mm-72mm

LM-ZZ-5 Drum type air filter origami (700 type) 700mm width Folding height range 22mm-72mm

LM-ZZ-5 Drum type air filter origami (700 type) 700mm width Folding height range 22mm-72mm
  • LM-ZZ-5 Drum type air filter origami (700 type) 700mm width Folding height range 22mm-72mm
  • LM-ZZ-5 Drum type air filter origami (700 type) 700mm width Folding height range 22mm-72mm
Product Details:
Place of Origin: CHINA
Brand Name: PLM
Certification: ISO9001
Model Number: PL-ZZ-5(700 TYPE)
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $20000/set
Packaging Details: wooden case packing
Delivery Time: 45days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Design Speed: 120 M/min Origami Width: 100-700mm
Folding Height Range: 22mm-72mm Total Power: 18 Kilowatts
Air Pressure: 0.6 MPa Power Supply: 380/50 Hz

LM-ZZ-5 Drum type air filter origami (700 type) 700mm width Folding height range 22mm-72mm





LM-ZZ-5 Drum type air filter origami (700 type) 700mm width Folding height range 22mm-72mm specification





Design speed 120 m/min
Origami width 100-700mm
Folding height range 22mm-72mm
Total power 18 kilowatts
Air pressure 0.6 MPa
Power supply 380/50 Hz





LM-ZZ-5 Drum type air filter origami (700 type) 700mm width Folding height range 22mm-72mm features




1, Both the work speed of the machine and transmission speed of the conveyer belt are controlled by a computer and can be easily adjusted.
2, Both impression and bubble formation are finished on identical pairs of rollers with high precision.
3, The temperature can be predetermined in accordance with

the requirement of the technological process. When the pleating machine runs and the heater will start to work automatically.
4, It adopts the water steam device, which is advantageous to prevent the paper from breaking when it is marked by rollers.



Required electrical brand





name:Brand

Low-voltage electrical appliances:Delixi Feihu

Touch screen:Maintenance

PLC:Xinjie

Stepping:Jemikang

Electric motor:Pfeid

Frequency converter:Flextronics

Pneumatic Components:Somai Orekai





LM-ZZ-5 Drum type air filter origami (700 type) 700mm width Folding height range 22mm-72mm photos

LM-ZZ-5 Drum type air filter origami (700 type) 700mm width Folding height range 22mm-72mm 0

LM-ZZ-5 Drum type air filter origami (700 type) 700mm width Folding height range 22mm-72mm 1
