| Place of Origin: | CHINA |
| Brand Name: | PLM |
| Certification: | CE |
| Model Number: | PLCY-200 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD 13000/SET |
| Packaging Details: | EXPORT STANDARD WOOD CARTON |
| Delivery Time: | 20 DAYS AFTER DEPOSIT |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5 SETS PER 30 DAYS |
| Product Name: | Diesel Filter Comprehensive Test Bench Oil Filter Making Machine | Max.Capacity Of Oil Tank: | 50L |
|---|---|---|---|
| Flow Precision: | 1grade | Temperature Precision: | ≦±1℃ |
| Applicable Industry: | Manufacturing Plant | Core Components: | Engine |
| Warranty: | 1 Year | Video Factory Inspection: | Provided |
| High Light: | 50L Oil Filter Making Machine,0.25Kw Oil Filter Making Machine,380V filter testing equipment |
||
Diesel Filter Comprehensive Test Bench Oil Filter Making Machine
Diesel Filter Comprehensive Test Bench Oil Filter Making Machine General description
The test rig is used to detect the filtration efficiency and clogging life of the diesel filter.
Diesel Filter Comprehensive Test Bench Oil Filter Making Machine Features
1 It is mechanical-electrical-pneumatic integration,with structure compact and easy to be operate,and high automatic degree.
2 Using the U type pressure gauge, pressure gauge measurement system of double precision pressure gauge.
3 Mixing system is utilized to make the impurities and oil evenly blended.
4 Equipped two 0.8μm stainless steel precise filters to ensure the testing oil clean.
5 The working table and oil tank are all made of stainless steel,and the pipelines uses excellent copper tubing and coupler.
6 Test criterion:JB/T8122-1999,ISO4020.
Diesel Filter Comprehensive Test Bench Oil Filter Making Machine Specification
|
Max.Capacity of oil tank |
50L |
|
Flow precision |
1grade |
|
Pressure precision |
0.5grade |
|
Main motor power |
0.25Kw |
|
Working pressure |
0.6MPa |
|
Supply voltage |
380V/50HZ |
| M/C weight | 500kg |
| Size of the main machine |
1500×810×1620mm(L×W×H) |

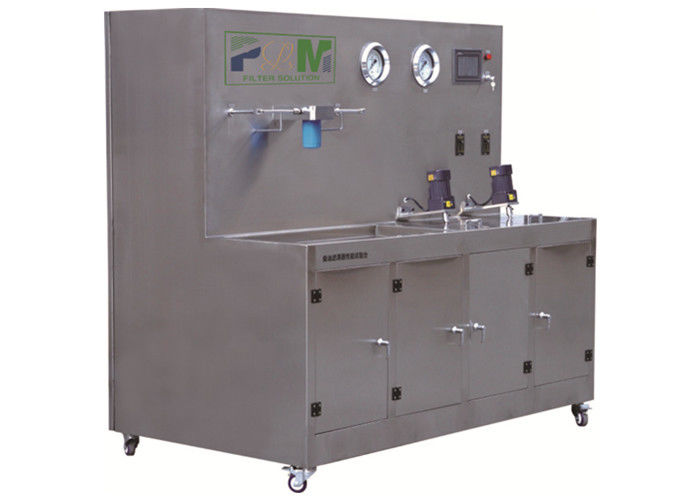

Diesel Filter Comprehensive Test Bench Oil Filter Making Machine Photo
