| Place of Origin: | CHINA |
| Brand Name: | PLM |
| Certification: | CE |
| Model Number: | PLQF-130 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD 8000/SET |
| Packaging Details: | EXPORT STANDARD WOOD CARTON |
| Delivery Time: | 20 DAYS AFTER DEPOSIT |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5 SETS PER 30 DAYS |
| Product Name: | Thick Iron Plate Sealing Machine Spin-On Oil Filter Making Machine | Production Capability: | 35 Cans/min |
|---|---|---|---|
| Sealing Diameter: | Φ50~Φ150mm | Sealing Parts Assembly Height: | 50~350mm |
| Video Factory Inspection: | Provided | Warranty: | 1 Year |
| Out-of-warranty Service: | Video Technical Support | Applicable Industry: | Manufacturing Plant |

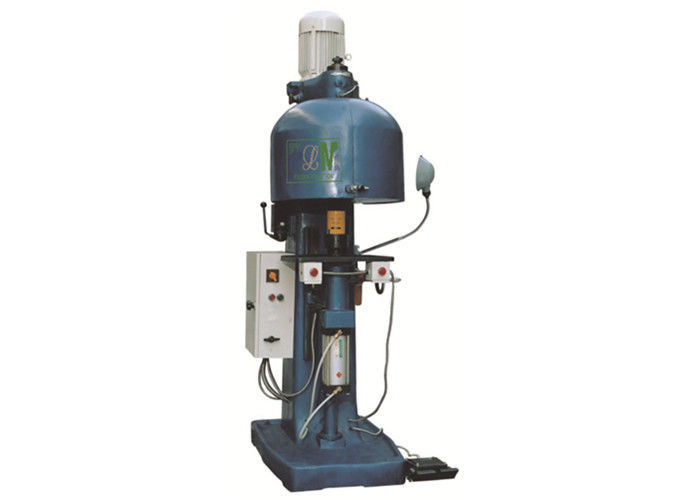

Thick Iron Plate Sealing Machine Spin-On Oil Filter Making Machine
Thick Iron Plate Sealing Machine Spin-On Oil Filter Making Machine Features
1 The machine uses safe physical construction and well-suited electric control,adopting pneumatic operation,working fast and sensivive.
2 Of high automatic degree:delivery~clutch~sealing wheel onward or backward~seal are automatically performed in order,so it is efficient and quality safeguarded.
3 With cycle control function,convenient and safe.
4 Adopts manual mode by pressing the button in favor of the operators' security.
5 The sealing wheel uses cr12mov of high as-quenched hardness and fine wear resistance to lengthen the service life.
Thick Iron Plate Sealing Machine Spin-On Oil Filter Making Machine Applications
The machine is professional used to seal the shells of rotary type and fuel filter with sealing back plate.
Thick Iron Plate Sealing Machine Spin-On Oil Filter Making Machine Specification
|
Production capability |
35cans/min |
|
Sealing diameter |
Φ50~Φ150mm |
|
Sealing parts assembly height |
50~350mm |
|
The thickness of the plate |
1mm |
|
Motor power |
4kw |
|
Working air pressure |
0.6MPa |
|
Power supply |
380V/50Hz |
|
M/C Weight |
800kg |
|
M/C size |
940×640×2150mm(L×W×H) |
Thick Iron Plate Sealing Machine Spin-On Oil Filter Making Machine Package
