| Place of Origin: | CHINA |
| Brand Name: | PLM |
| Certification: | CE |
| Model Number: | PLWL-350-II |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD 5800/SET |
| Packaging Details: | Export Standard Wood Carton |
| Delivery Time: | 20 days after deposit |
| Payment Terms: | TT / LC / West Union |
| Supply Ability: | 1 set per 20days |
| Max.width: | 300mm | Max.Coil Diameter: | 1000mm |
|---|---|---|---|
| Speed: | 20 Sheets/min(length：500mm) | Motor Power: | 0.75kw |
| Power Supply: | 380V/50Hz | Working Air Pressure: | 0.6MPa |
| M/C Weight: | 600kg | M/C Size: | 3400×510×1600mm(L×W×H) |
| High Light: | 0.75kw Aluminum Corrugating Machine,1000mm Aluminum Corrugating Machine,600kg Paper Corrugating Machine |
||

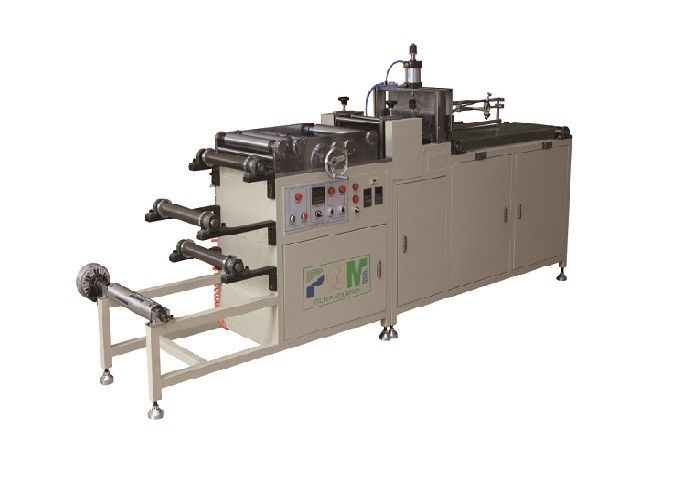

Separated HEPA Filter Corrugating Machine/For Paper or Aluminum Hepa Filter Making Machine
General Description
It is technically used in shaping the aluminum foil corrugation of separated high efficiency filter.
Specification
1. Max.width:300mm
2. Max.Coil diameter:1000mm
3. Customize the rollers according to the pleating height and pitch of waves.
4. Speed:20 sheets/min(length:500mm)
5. Motor power:0.75kw
6. Power supply:380V/50Hz
7. Working air pressure:0.6MPa
8. M/C weight:600kg
9. M/C size:3400×510×1600mm(L×W×H)
Features
1. The roller speed can be controlled through variable-speed motor to accommodate different working conditions.
2. The length can be set freely, and cut off automatically.
3. It is equipped with the aluminum edge-doubled device while corrugating. Which prevent the fiber glass form breaking.
4. Use the gathering cylinder to collect products into the container.
5. High efficiency and simple operation.
