Place of Origin: | China |
Brand Name: | Leiman |
Model Number: | PLZJ-2A |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $13500/ set |
Packaging Details: | EXPORT STANDARD WOODEN CARTON |
Delivery Time: | 25-30 days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 10 sets/month |
Product Name: | PLZJ-2A 4 Pcs/time Full-Auto End Cap Gluing Machine For 50–110 Mm End Caps | Available ID Of The End Cap: | 50–110 Mm |
---|---|---|---|
Max. End Caps Output: | 4 Pcs/time | Speed: | 45 Pcs/min |
Viscosity Of Glue: | ≤50000 CP | Glue Kind: | PVC (high Temp.solidified Adhesive) |
Power Supply: | 220/50 V/Hz | Conveyor Motor Power: | 2 KW |
Working Air Pressure: | 0.6 MPa | Pump Air Pressure: | 0.45 MPa |
M/C Weight: | 600 Kg | M/C Size (L × W × H): | 1700 × 1600 × 1600 Mm |
High Light: | 50Mm End Cap Gluing Machine,4 Pcs/Time End Cap Gluing Machine,110Mm End Cap Gluing Machine |

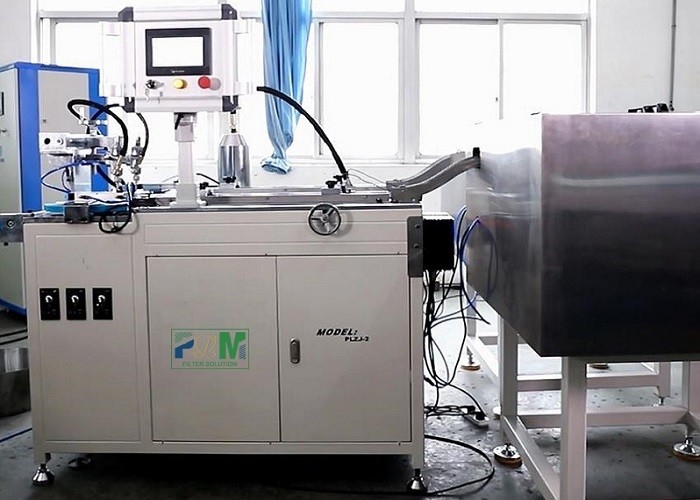

The PLZJ-2A machine is used to glue the filter element end caps.
Product Name | PLZJ-2A 4 pcs/time Full-Auto End Cap Gluing Machine for 50–110 mm End Caps |
Available ID of The End Cap | 50–110 mm |
Max. End Caps Output | 4 pcs/time |
Speed | 45 pcs/min |
Viscosity of Glue | ≤50000 cP |
Glue kind | PVC (high temp.solidified adhesive) |
Power Supply | 220/50 V/Hz |
Conveyor Motor Power | 2 kW |
Working Air Pressure | 0.6 MPa |
Pump Air Pressure | 0.45 MPa |
M/C Weight | 600 kg |
Key Words | 4 pcs/time Full-Auto End Cap Gluing Machine for 50–110 mm End Caps |
