| Place of Origin: | CHINA |
| Brand Name: | PLM |
| Certification: | SE |
| Model Number: | PLCZ55-600-A |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | USD 16000/SET |
| Packaging Details: | EXPORT STANDARD WOOD CARTON |
| Delivery Time: | 20 DAYS AFTER DEPOSTI |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5 SETS PER 30DAYS |
| PRODUCT NAME: | Full-auto Second Generation CNC 55 Fold Height 600 Wide Knife Paper Pleating Machine | Speed: | 0.5m/min-12m/min |
|---|---|---|---|
| Adjustablewidth: | 50-600mm | Powersupply: | 220V/50HZ |
| Kwmotorpower: | 0.75kw | Workingairpressure: | 0.6Mpa |
| M/Cweight: | 350KG | Size: | 1300*1400*1040 |
| High Light: | 600mm cnc folding machine,0.75kw cnc folding machine,0.6Mpa Paper Folding Machine |
||
Full-auto Second generation CNC 55 Fold height 600 Wide knife paper pleating machine
Full-auto Second generation CNC 55 Fold height 600 Wide knife paper pleating machine consists
1. Auto paper de-coiler
2. Pre-slitting conveyor
3. Marker
4. Auto counter
5. Filter paper pleating machine(equipped with pre-heater and monitor)
Full-auto Second generation CNC 55 Fold height 600 Wide knife paper pleating machine Characteristics
1. The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. it is simple operated but smooth and effective. After slitting the paper the conveyor for feeding the filter paper runs in synchronism with th marking machine by equipping the monitoring system..
2. The marking machine can be marked in different pleat sizes, the marking distance can be arbitrarily set by the computer, and the distance will be accurately marked with the servo motor load.
3. The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.
4. After marking, the filter paper will be pleated and pre-heated.
5. The machine is also suitable for folding the iron wire fabric and non-woven fabric of the hydraulic filter , even the multilayer folding,
Full-auto Second generation CNC 55 Fold height 600 Wide knife paper pleating machine Applications
The production line is suitable for automobile three-filter industry and hydraulic industry.
Full-auto Second generation CNC 55 Fold height 600 Wide knife paper pleating machine specifiction
|
1. Model 55-600-A Pre-slitter 1) Speed: 0.5m/min-12m/min(adjustable) 2) adjustable width: 50-600mm 3) power supply:220V/50HZ 4) kwmotor power:0.75kw 5) working air pressure:0.6Mpa 6) M/C weight:350KG 7) Size:1300*1400*1040(Length * width * height) |
|
2. paper folding machine:55-600-A 1) Max width 600mm 2) adjustable pleating height: 8-65mm, 3) pleating speed: 0-140pleats/min 4) power supply: 380v/50hz 5) motor power: 4kw 6) pre-heater power: 4kw 7) heating temp: normal-250° 8) working air pressure: 0.6MPa 9) size: 1600*1720*1500 10) Weight: 700KG |

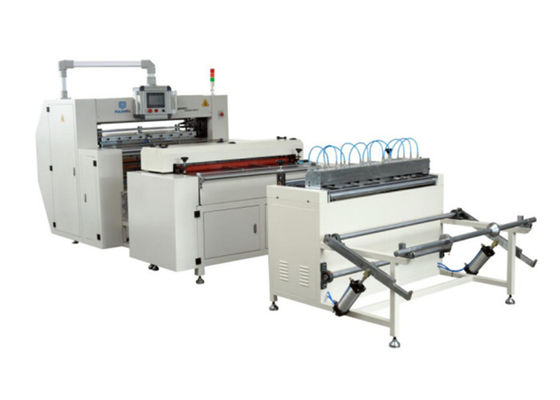

Full-auto Second generation CNC 55 Fold height 600 Wide knife paper pleating machine photo
Contact Person: Miss. Dora
Tel: 15383380882
