| Place of Origin: | CHINA |
| Brand Name: | PLM |
| Certification: | CE |
| Model Number: | PLTN-100-8 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD 10300/SET |
| Packaging Details: | EXPORT STANDARD WOOD CARTON |
| Delivery Time: | 20 DAYS AFTER DEPOSIT |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5 SETS PER 30 DAYS |
| Product Name: | Automatic Turntable Bypass Valve Bump Welding Oil Filter Making Machine | Rated Primary Voltage: | 380V/50Hz |
|---|---|---|---|
| Rated Capacity: | 100KVA | Rated Primary Current: | 263A |
| Applicable Industry: | Manufacturing Plant | Core Components: | Engine |
| Warranty: | 1 Year | Video Factory Inspection: | Provided |
| High Light: | 263A Filter Valve Assembly Machine,100KVA filter making machine,380V filter making machine |
||
Automatic Turntable Bypass Valve Bump Welding Oil Filter Making Machine
Automatic Turntable Bypass Valve Bump Welding Oil Filter Making Machine General description
This machine is suitable for the automatic welding machine for automobile diesel oil filter cover and fixed plates.
Automatic Turntable Bypass Valve Bump Welding Oil Filter Making Machine Features
1 this machine has 8 stations on the work piece, the work piece automatically removed after welding.
2 The welding is through pneumatic pressing the electrode welding, and the welding current through direct heating method to reach the spot.
3 welding time is short, high efficiency, stable welding quality.
Automatic Turntable Bypass Valve Bump Welding Oil Filter Making Machine Specification
|
Rated capacity |
100KVA |
| Phase number | 1 |
| Rated primary current | 263A |
|
Working pressure |
0.4Mpa |
| Power supply | 380v/50hz |
| M/C weight | 850kg |
| Size of the main machine |
1500×800× 1700mm(L×W×H) |

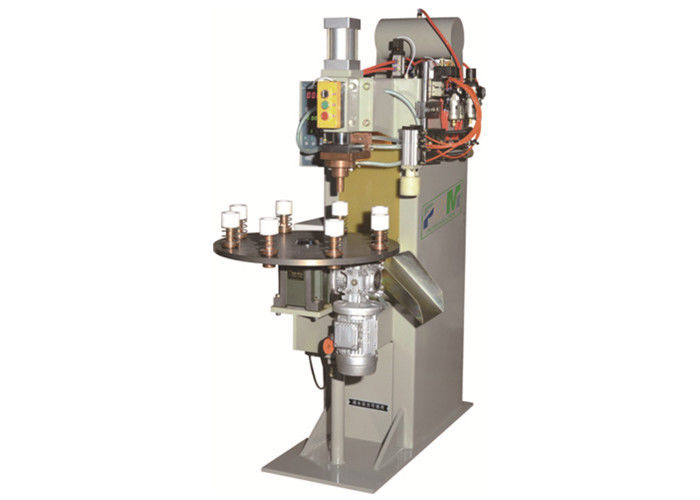

Automatic Turntable Bypass Valve Bump Welding Oil Filter Making Machine Photo
